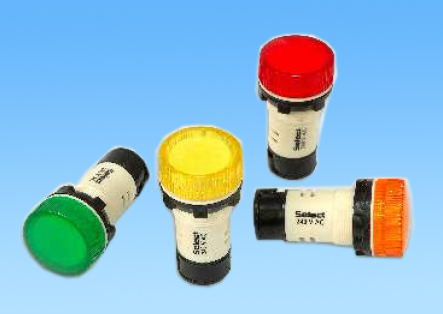

SELECT range of Ø 22.5 series LED indicating lamps are manufactured with engineering plastic and have been designed to provide our customer a highly reliable and energy saving device.

Description

SELECT range of Ø 22.5 series LED indicating lamps are manufactured with engineering plastic and have been designed to provide our customer a highly reliable and energy saving device.

Salient features of our indicating lamps includes:

  • Robust design
  • Integral LED
  • Wide range of voltages in AC and DC
  • Shrouded terminals
  • IP 65 protection

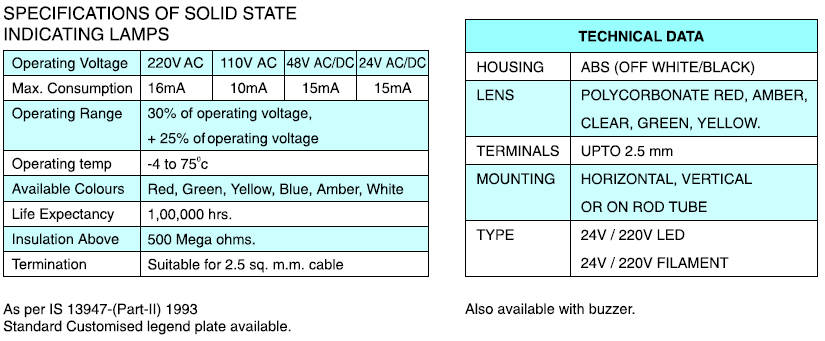

Standards:

Applicable Standards IEC 60947-5.1
Degree of Protection IP 65
Operating conditions +70˚C to -25˚C
Mounting Panel thickness: metal: 1 to 6mm

Fixing hole: 22.5mm



Current consumptions
24 VAC/DC, 110 VAC & 240 VAC max. 20 mA
110 VDC/220 VDC max. 10 mA
Operating life (ambient temperature of 25 ° C) 50,000 hours
